REEFS RC 99 Micro Digital Metal Gear Waterproof Servo, Black - SEHREEFS25

PRODUCT INFORMATION

99 Micro Servo

FEATURES - - -

SPECS - - -

· Application - 1/24 Rock Crawlers

· Bearing - Dual Ball Bearing

· Bushing Or Bearing - Bearing

· Connector Type - Universal

· Current Draw Idle - 200mA

· Current Draw Stall - 2400mA

· Deadband - 2µs

· Input Voltage - 6.0V ~ 8.4V

· Maximum Servo Speed - 0.11 sec/60 deg @ 6.0V, 0.09 sec/60 deg @ 7.4V, 0.08 sec/60 deg @ 8.4V

· Maximum Servo Torque - 89oz/in @ 6.0V, 99oz/in @ 7.4V, 115oz/in @ 8.4V

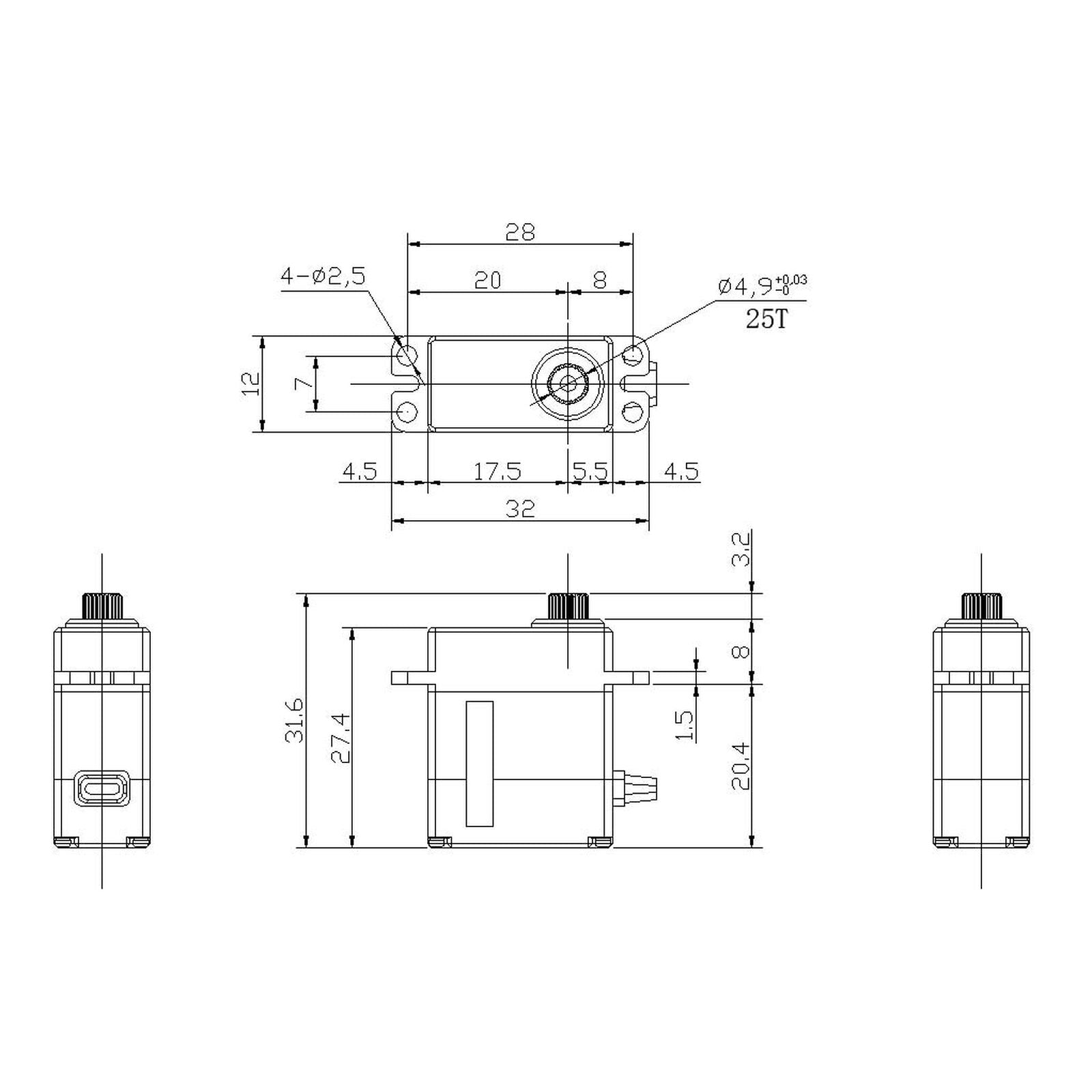

· Product Height - 1.08" (27 mm)

· Product Length - 0.9" (23 mm)

· Product Weight - 0.70oz (19.8g)

· Product Width - 0.47" (12 mm)

· Programmable - No

· Servo Operating Voltage - 6.0 - 8.4V (HV)

· Servo Size Category - Mini and Micro

· Servo Type - Digital

· Spline Count - 25 - Tooth

· Water-Resistant - Yes
