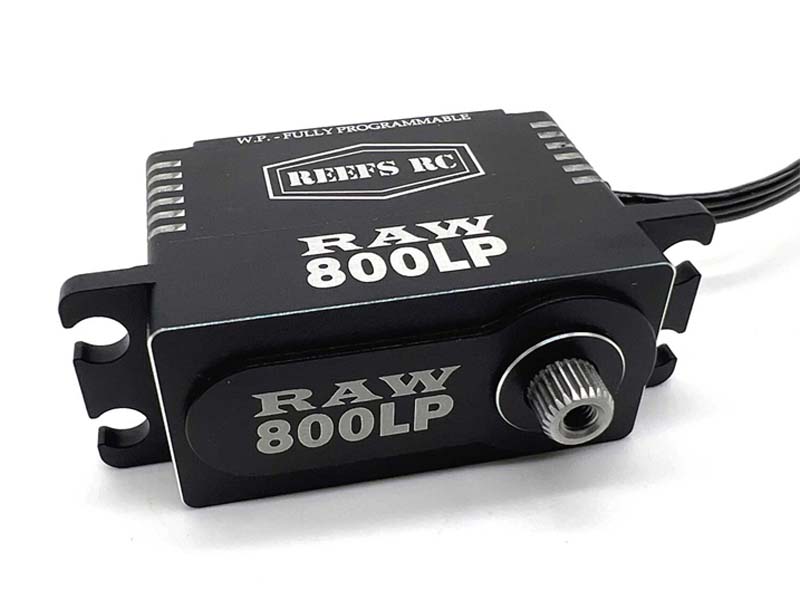

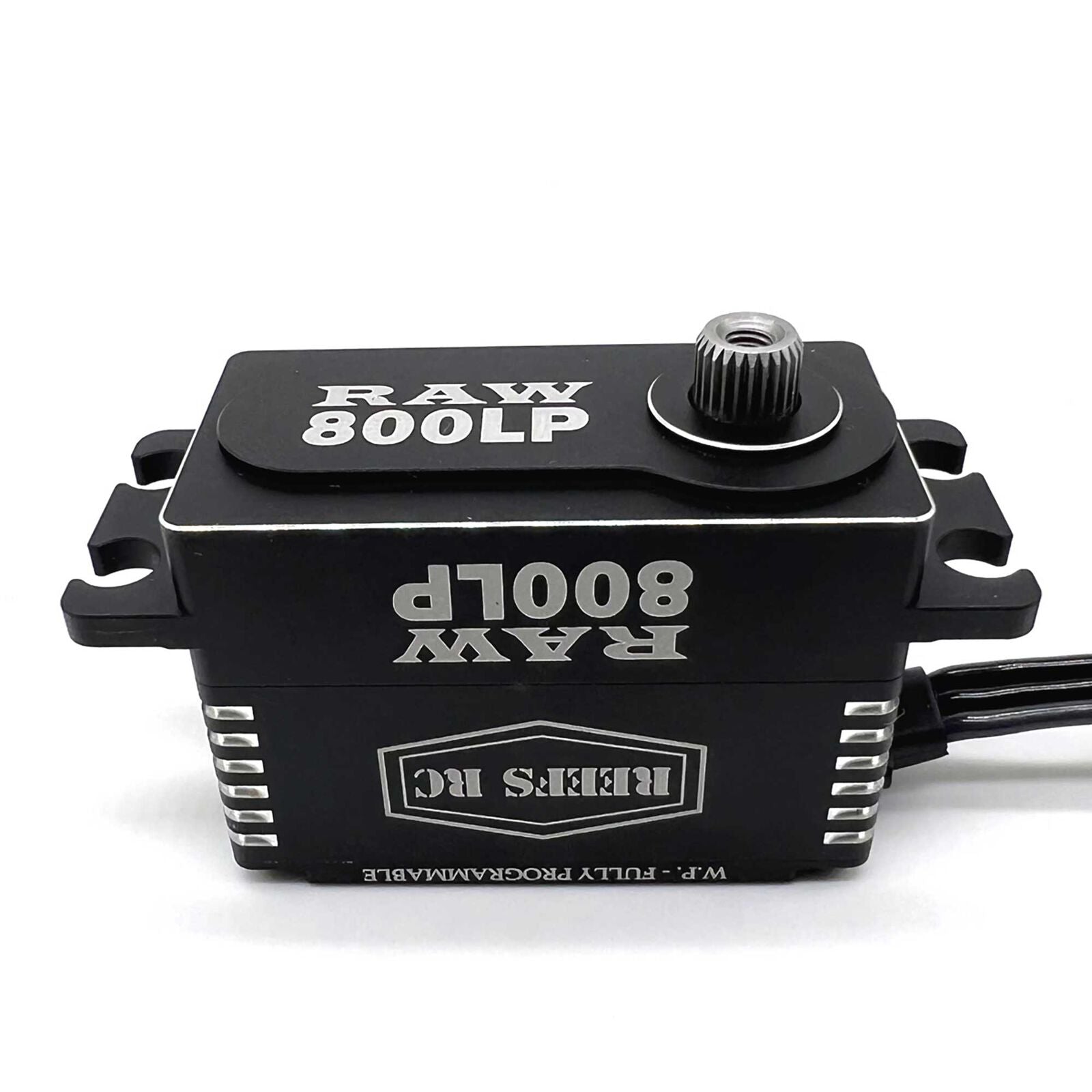

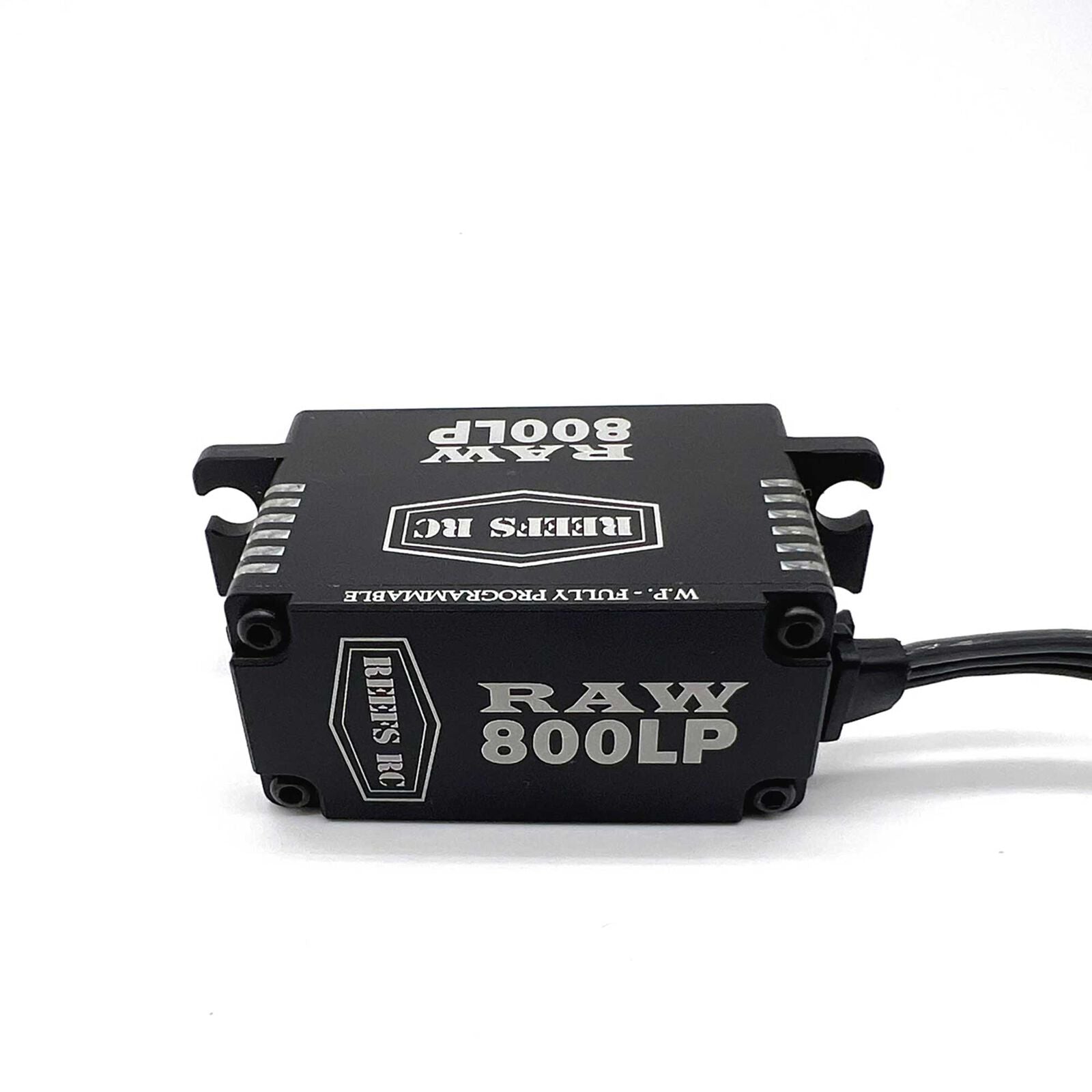

REEFS RC RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Black - SEHREEFS146

REEFS RC RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Black - SEHREEFS146

PRODUCT INFORMATION

The RAW800LP is made for crawlers that need clearance without sacrificing power and speed. Specially designed for applications such as the Axial SCX Pro servo on axle application.

FEATURES  - - -

• Fully Programmable
• High Torque And High Speed
• 4 POLE - Brushless Low Pro Servo
• Submarine Waterproof
• Magnetic Angle Sensor

SPECS - - -

·         Bearing - 2 Ball Bearings

·         Bushing Or Bearing - Bearing

• Deadband - 2µs
• Gear Type - Metal
• Input Voltage - 4.8V - 8.4V
• Maximum Servo Speed - .12sec @6v/.10sec @7.4v/.09sec @8.4v
• Maximum Servo Torque - 800oz @8.4v

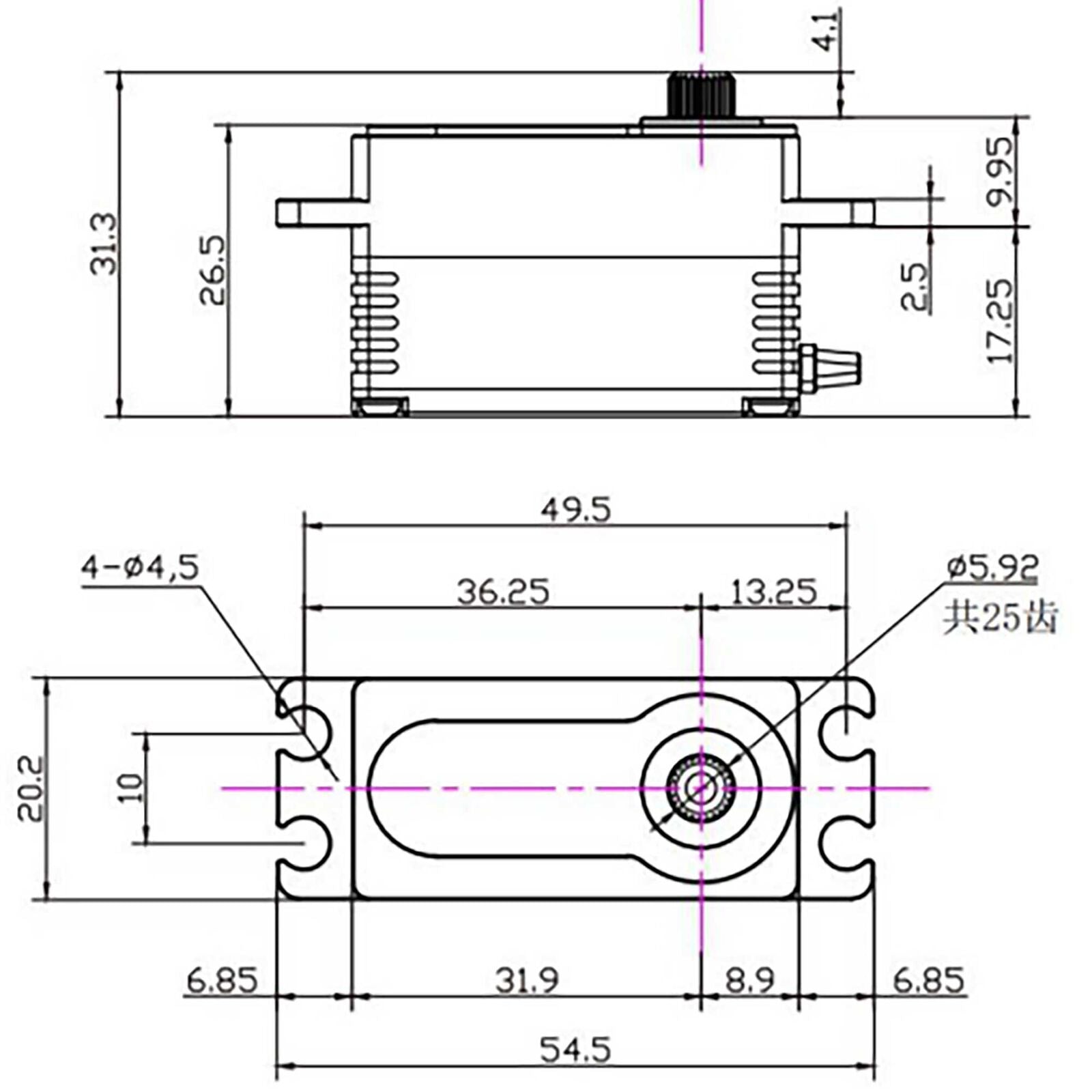

• Product Height - 1.16" (29 mm)

• Product Length - 1.6" (41 mm)
• Product Weight - 2.3oz / 66gm
• Product Width - 0.79" (20 mm)
• Servo Operating Voltage - 4.8 - 8.4V (HV)
• Servo Size Category - Low Profile
• Spline Count - 25 - Tooth
• Torque - 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
