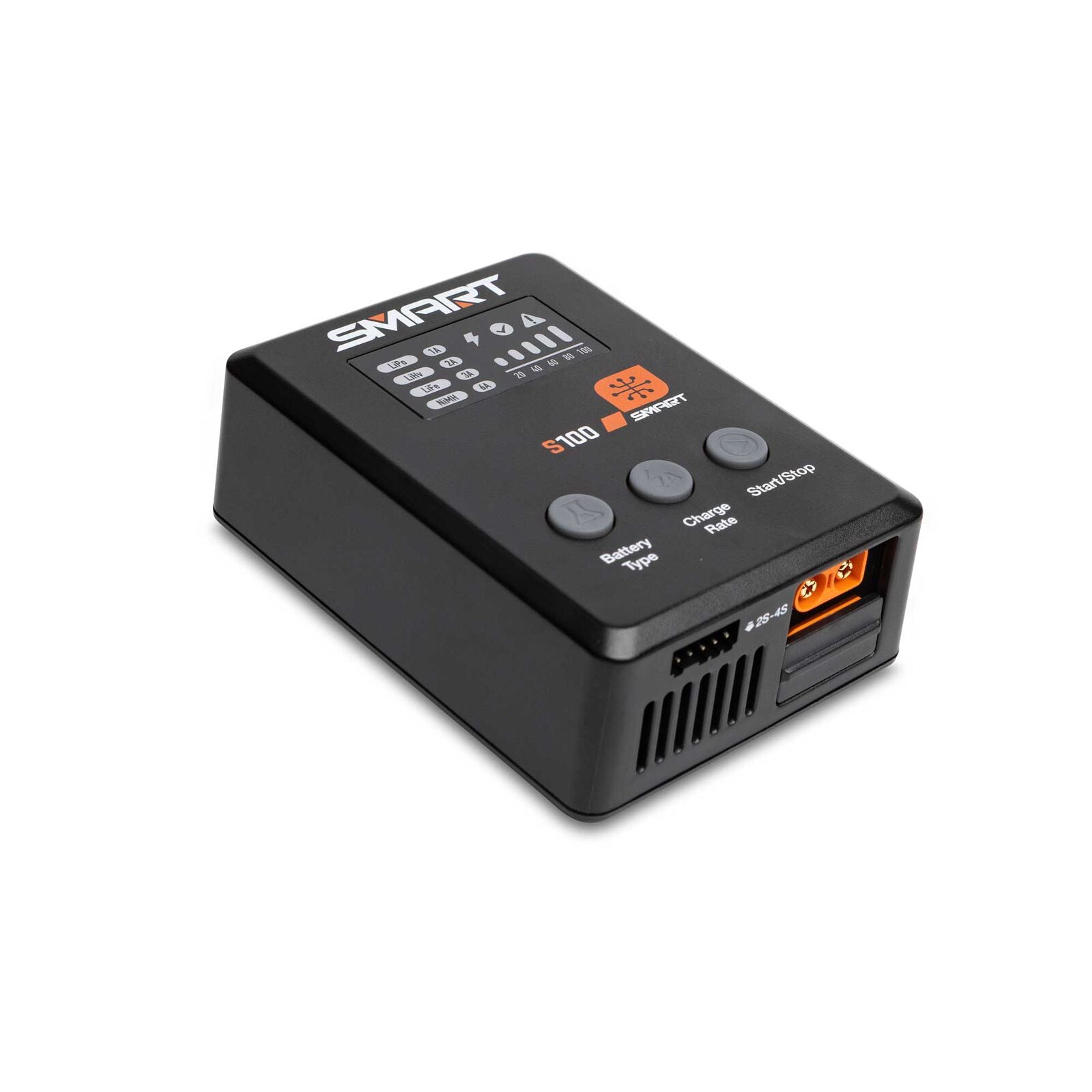

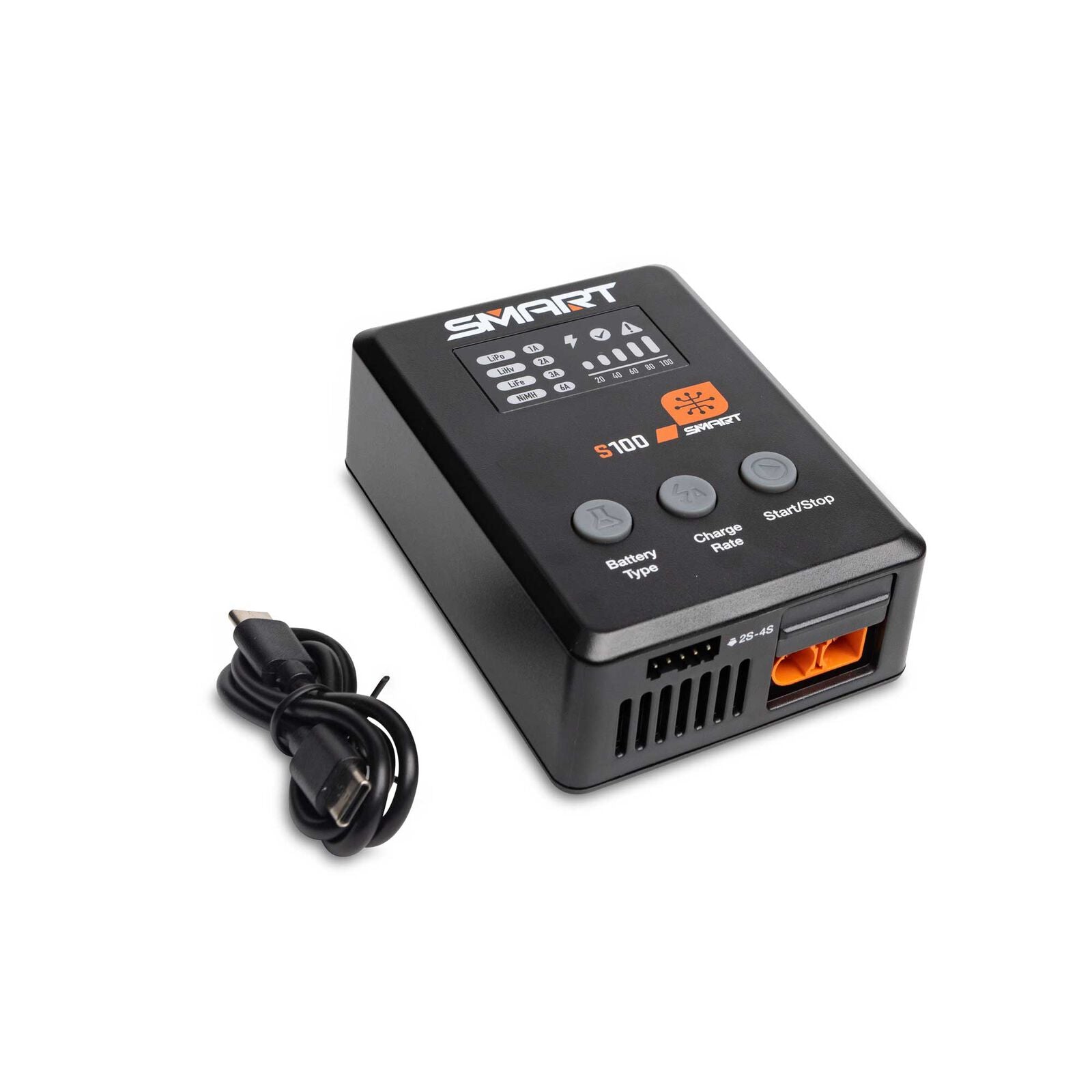

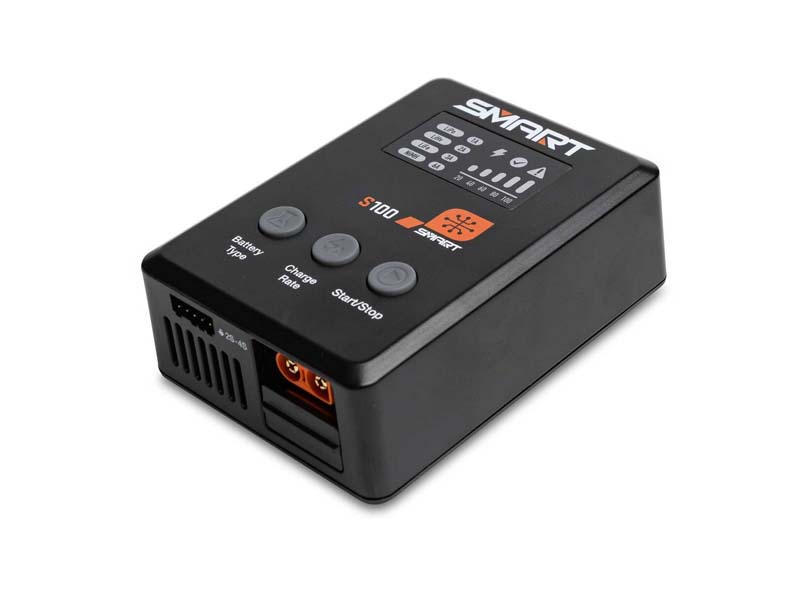

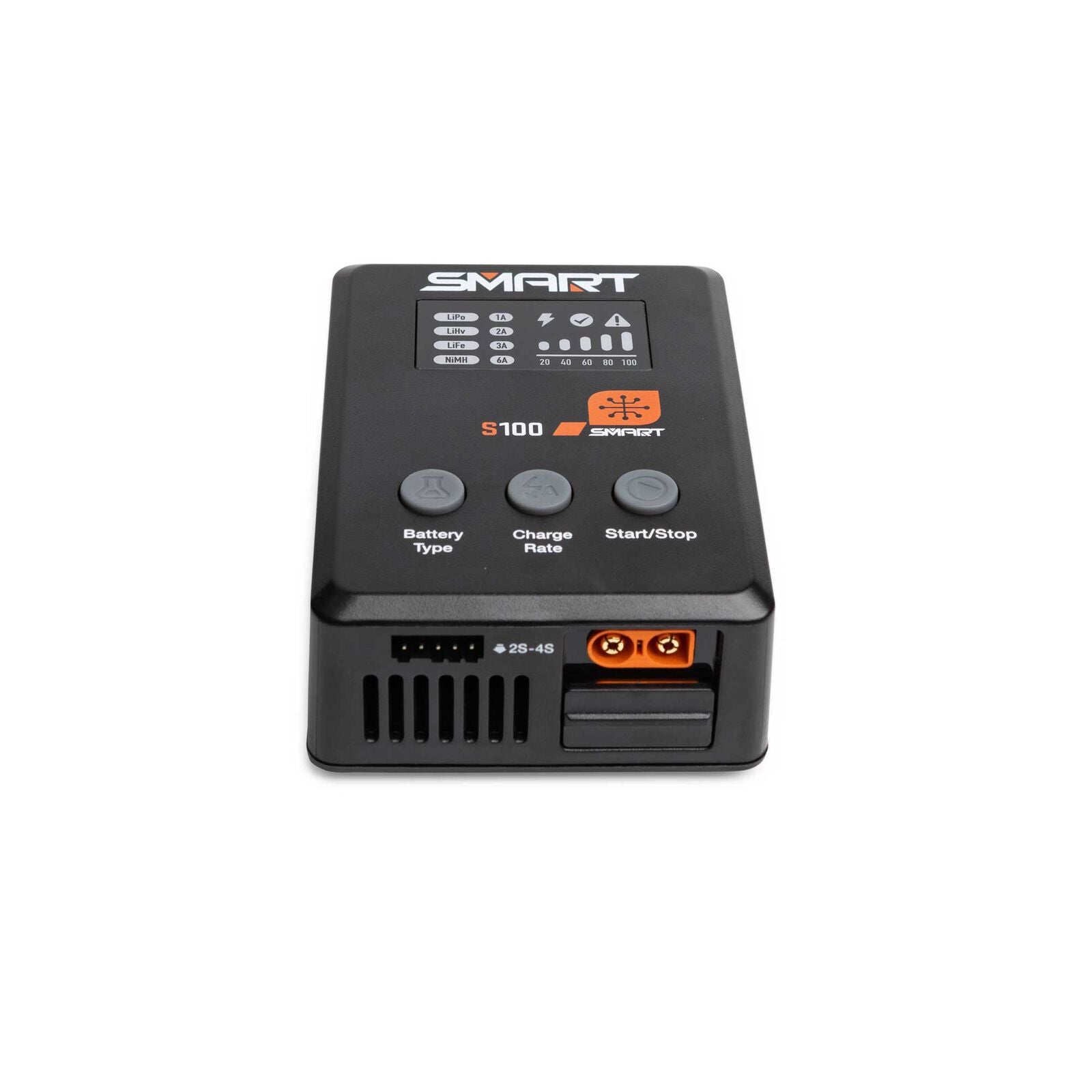

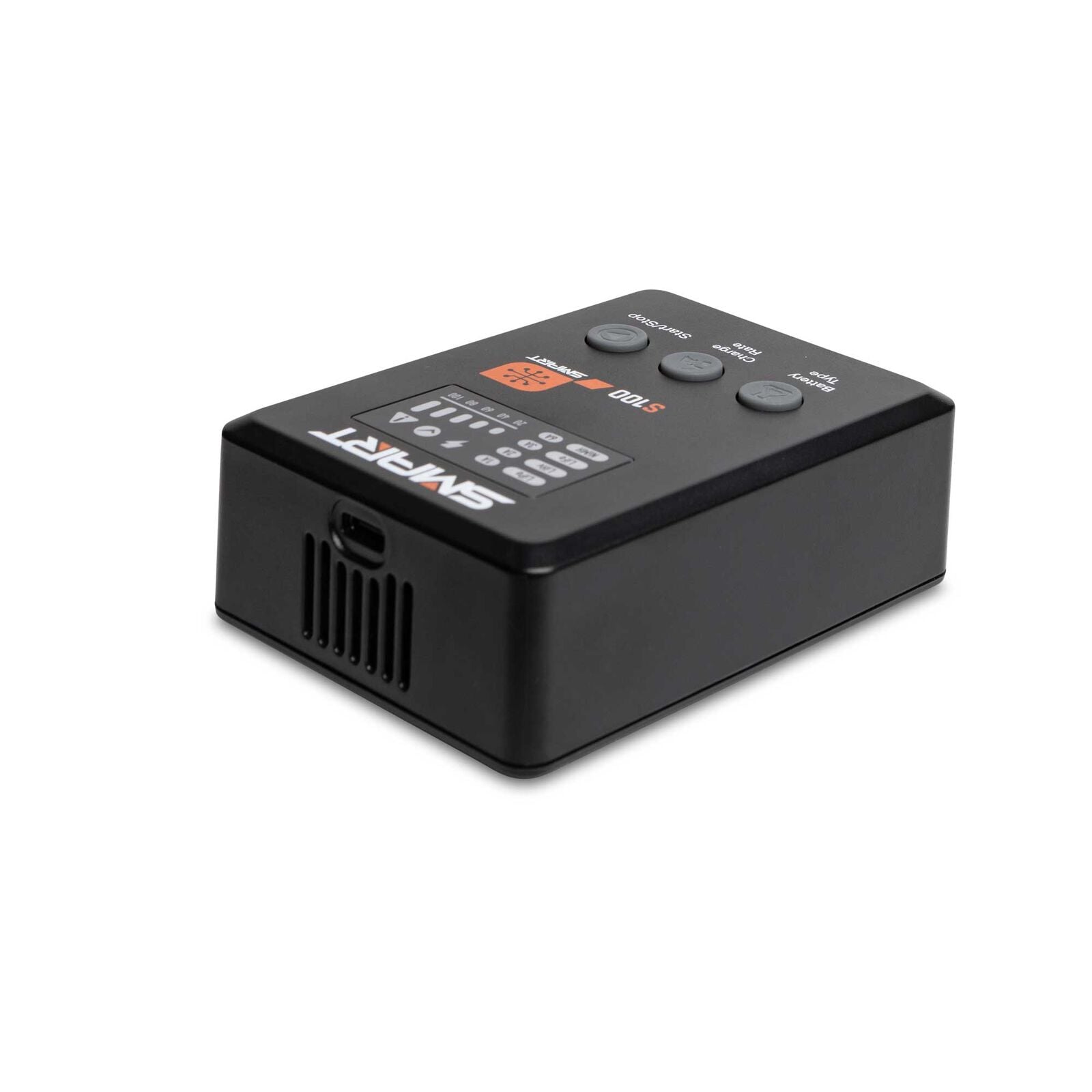

Spektrum Accessories S100 1x100W USB-C Smart Charger - SPMXC2090

PRODUCT INFORMATION

The Spektrum^™ S100 Smart USB-C Charger provides fast, easy charging for all modelers, especially using Smart batteries — with Auto Charge simplicity, one-connection balancing, IC3^® or IC5^® output ports for adapter-free convenience, and more.

FEATURES - - -

Capable of delivering up to 100W of charging power with compatible power supply and USB-C Cable

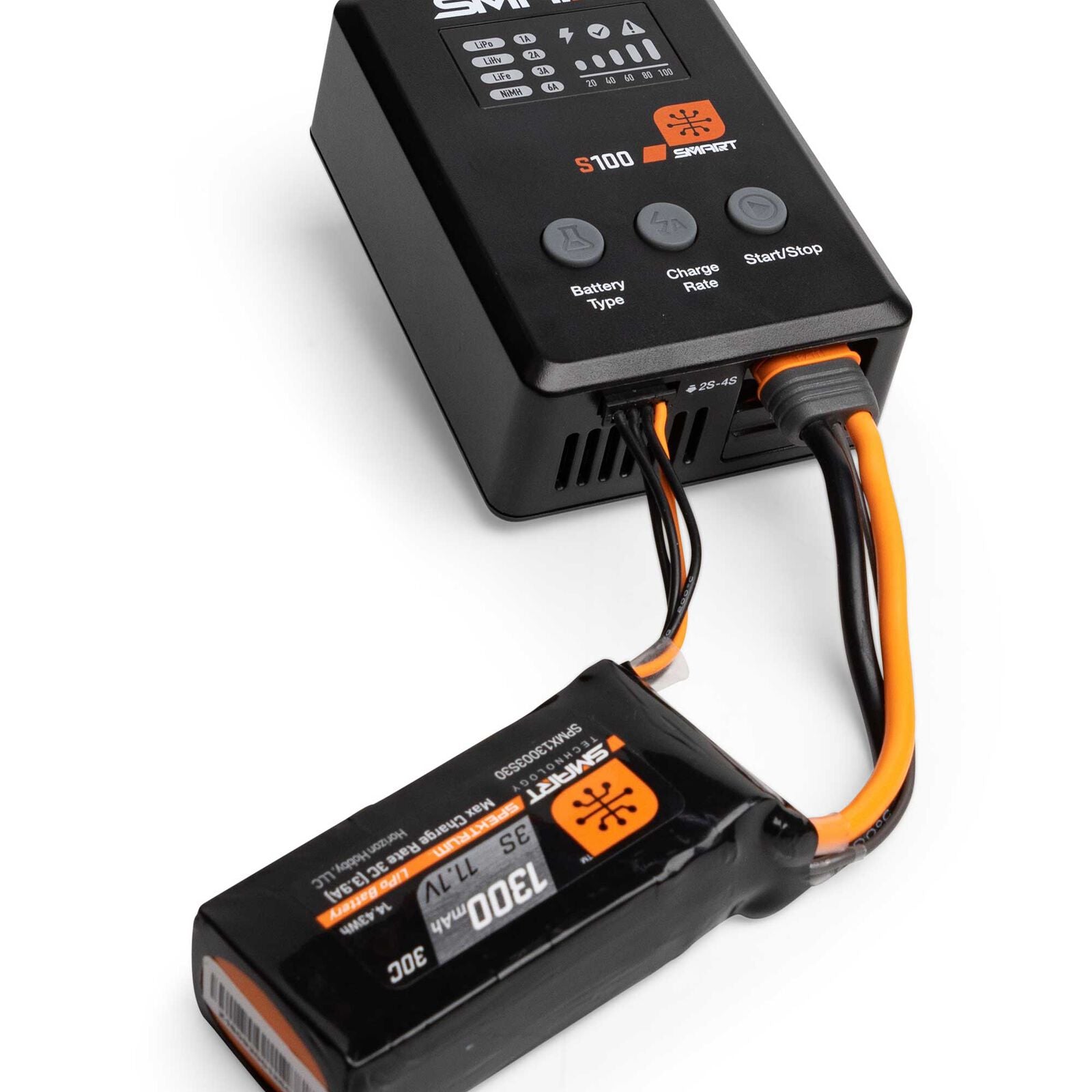

Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
Includes IC3® and IC5® charging output ports — no separate adapters required to charge different Spektrum™ Smart batteries
Can also be used to charge many standard hobby 1S-4S LiPo, LiIon, LiHV, LiFe, and 1C - 12C Smart NiMH batteries. Note: The S100 will not charge non-Smart NiMH brand batteries.

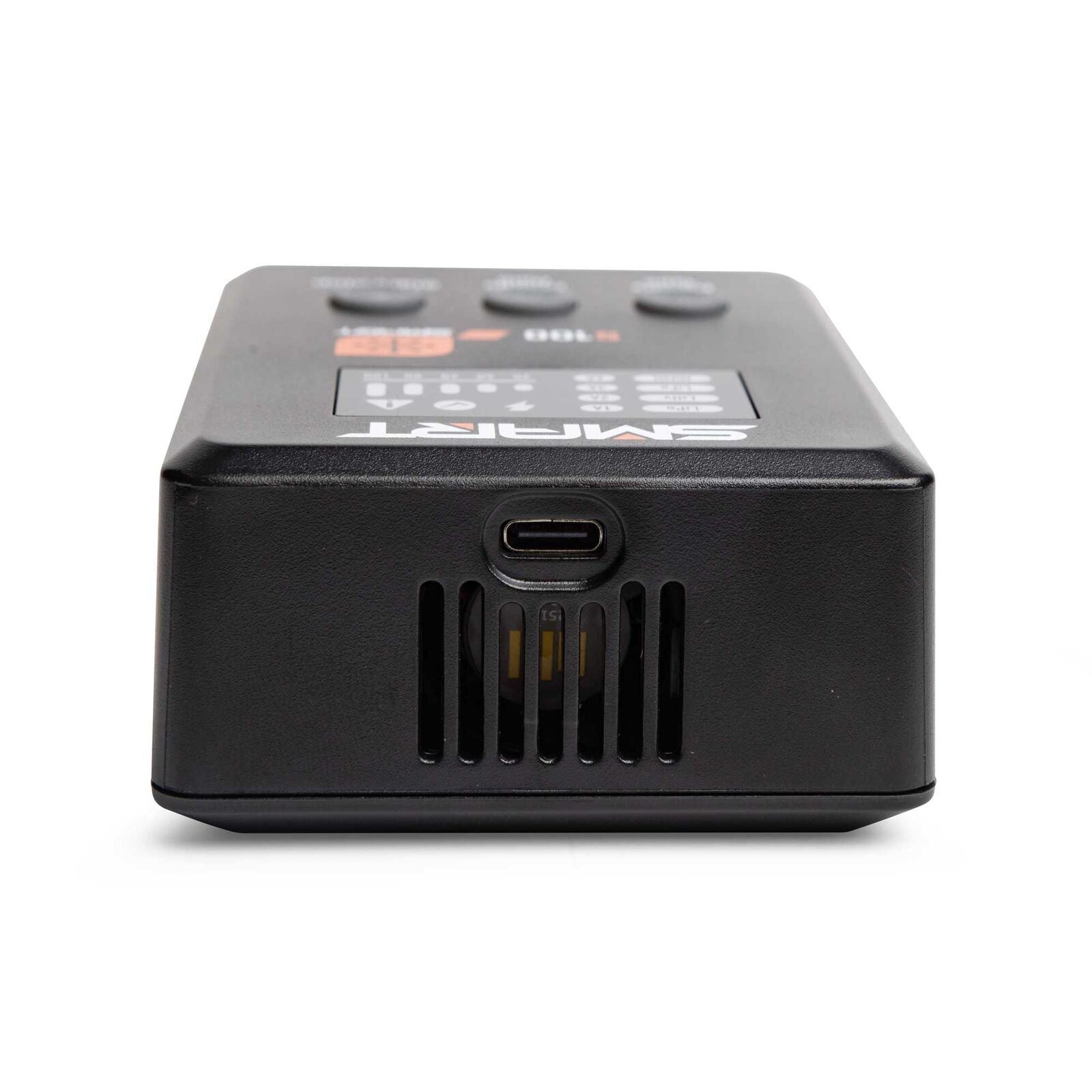

Accepts firmware updates via USB-C port

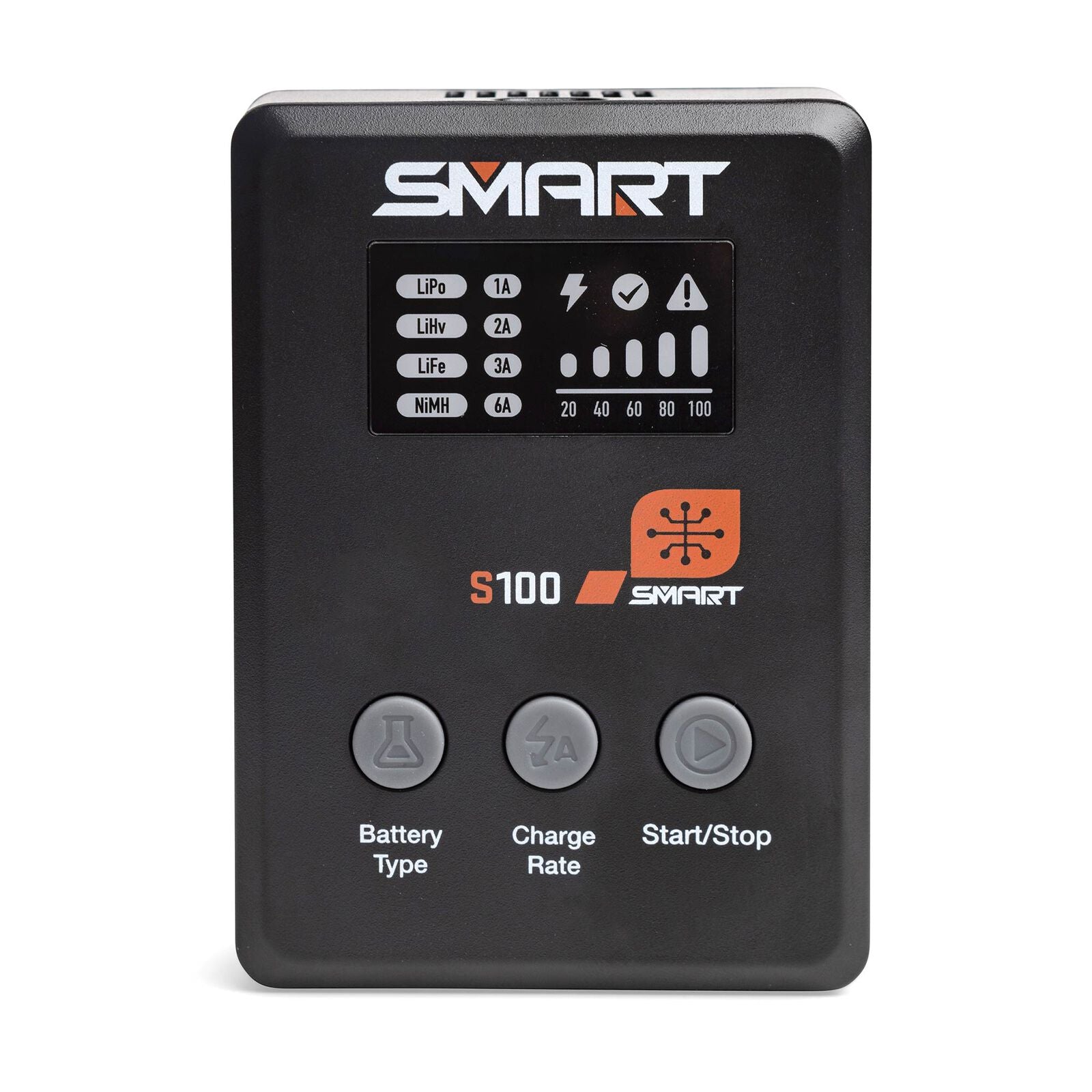

Color LED screen and three button interface makes charging and checking on a battery's status simple

SPECS - - -

· Application - RC Model Battery Charger

· Battery Balance Connector - JST-XH

· Battery Temperature Monitoring - Yes

· Battery Type - LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), Smart NiMH (1.2V per cell), LiIon (3.3V per cell)

· Display - LED

· Input Voltage - DC 5.0 - 20.0V, USB-C

· Integrated Balancing - Yes - Internal Balancer & External Adapter

· LiPo Compatibility - 4S, 1S, 2S, 3S

· Low Input Voltage Protection - Yes

· Maximum Charge Rate - 1A / 2A / 3A / 6A User Selectable

· Number of Output Ports - 1

· Output Connector - IC3, IC5

· Over Current Protection - Yes

· Part Type - Electronics

· PC Connectivity - Yes

· Peak Detection - Yes

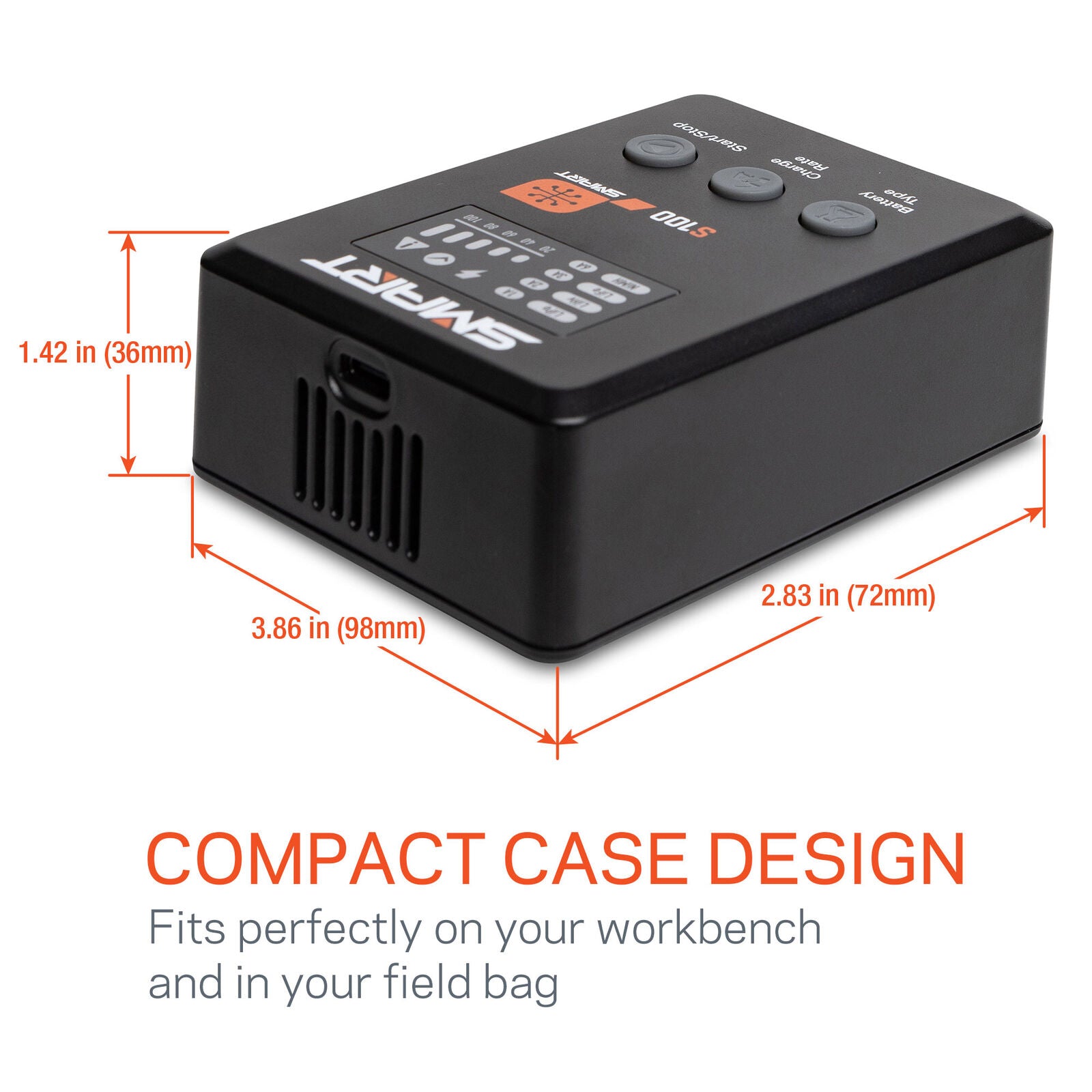

· Product Height - 1.42" (36 mm)

· Product Length - 3.86" (98 mm)

· Product Width - 2.83" (72 mm)

· Programmable - Yes

· Selectable Charge Rate - Yes

· Short Circuit Protection - Yes

· Software Updates - Yes

· Technology - Smart

· Thermal Protection - Yes
